Tag: Student Work

IDM231: Scripting for Interactive Digital Media I

By Amy Au – 2024

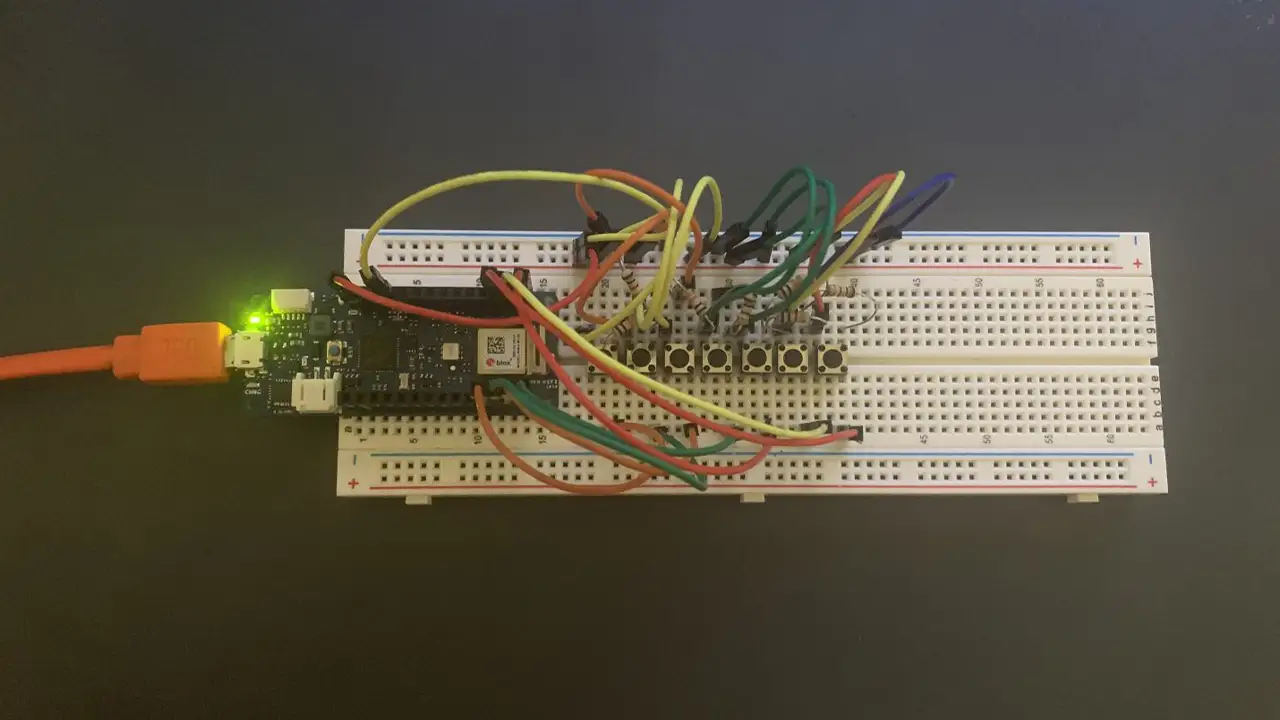

IDM382: Internet of Things by Wynn O’Donnell

Sample Code

            /*
              #include "thingProperties.h"

              const int buttonPin1 = 2;
              const int buttonPin2 = 3;
              const int buttonPin3 = 4;
              const int buttonPin4 = 5;
              const int buttonPin5 = 6;
              const int buttonPin6 = 7;
              const int buttonPin7 = 8;// the number of the pushbutton pin
              const int ledPin =  13;      // the number of the LED pin
              int buttonState1 = 0;
              int buttonState2 = 0;
              int buttonState3 = 0;
              int buttonState4 = 0;
              int buttonState5 = 0;
              int buttonState6 = 0;
              int buttonState7 = 0;

              String buttonpressStr1 = "Play C Note";
              String buttonpressStr2 = "Play D Note";
              String buttonpressStr3 = "Play E Note";
              String buttonpressStr4 = "Play F Note";
              String buttonpressStr5 = "Play G Note";
              String buttonpressStr6 = "Play A Note";
              String buttonpressStr7 = "Play B Note";

              void setup() {
                // Defined in thingProperties.h
                initProperties();
                  // Initialize serial and wait for port to open:
                Serial.begin(9600);
                // This delay gives the chance to wait for a Serial Monitor without
                blocking if none is found
                delay(1500);
                  // initialize the LED pin as an output:
                pinMode(ledPin, OUTPUT);
                // initialize the pushbutton pin as an input:
                pinMode(buttonPin1, INPUT);
                pinMode(buttonPin2, INPUT);
                pinMode(buttonPin3, INPUT);
                pinMode(buttonPin4, INPUT);
                pinMode(buttonPin5, INPUT);
                pinMode(buttonPin6, INPUT);
                pinMode(buttonPin7, INPUT);

                // Connect to Arduino IoT Cloud
                ArduinoCloud.begin(ArduinoIoTPreferredConnection);

                /*
                   The following function allows you to obtain more information
                   related to the state of network and IoT Cloud connection and errors,
                   the higher number the more granular information you’ll get.
                   The default is 0 (only errors).
                   Maximum is 4
               */
                setDebugMessageLevel(2);
                ArduinoCloud.printDebugInfo();
              }

              void loop() {
                ArduinoCloud.update();
                // Your code here
                  buttonState1 = digitalRead(buttonPin1);
                  buttonState2 = digitalRead(buttonPin2);
                  buttonState3 = digitalRead(buttonPin3);
                  buttonState4 = digitalRead(buttonPin4);
                  buttonState5 = digitalRead(buttonPin5);
                  buttonState6 = digitalRead(buttonPin6);
                  buttonState7 = digitalRead(buttonPin7);

                // check if the pushbutton is pressed. If it is, the buttonState is HIGH:
                if (buttonState1 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play C Note");
                  messenger = buttonpressStr1;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                  if (buttonState2 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play D Note");
                  messenger = buttonpressStr2;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                  if (buttonState3 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play E Note");
                  messenger = buttonpressStr3;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                  if (buttonState4 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play F Note");
                  messenger = buttonpressStr4;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                  if (buttonState5 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play G Note");
                  messenger = buttonpressStr5;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                  if (buttonState6 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play A Note");
                  messenger = buttonpressStr6;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
                    if (buttonState7 == HIGH) {
                  // turn LED on:
                  digitalWrite(ledPin, HIGH);
                  Serial.println("Play B Note");
                  messenger = buttonpressStr7;
                } else {
                  // turn LED off:
                  digitalWrite(ledPin, LOW);
                }
              }//End loop


              void onMessengerChange() {
                // Do something
              }

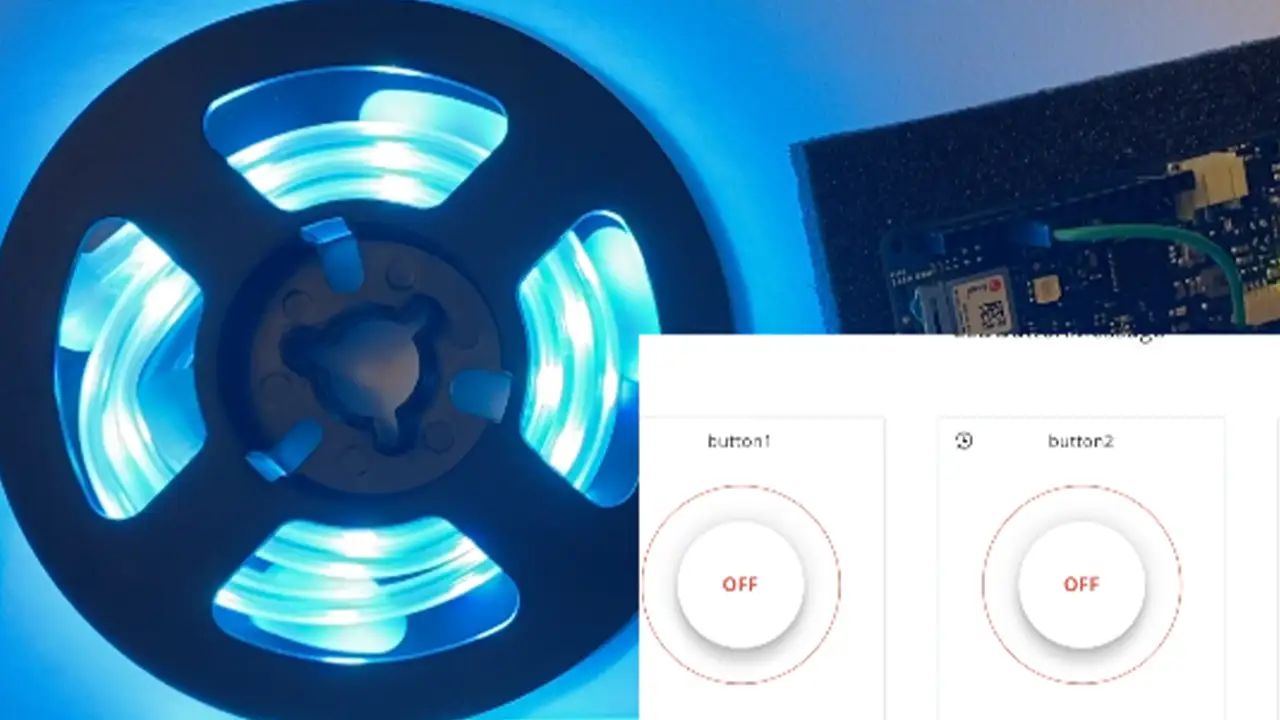

IDM382: Internet of Things by Leanne Chin


void loop() {
    ArduinoCloud.update();
    // Your code here
    //Serial.println("looping");

    for(int i=0;i<NUMPIXELS;i++){

      // pixels.Color takes RGB values, from 0,0,0 up to 255,255,255
      pixels.setPixelColor(i, pixels.Color(redColor, greenColor, blueColor));
      // Moderately bright green color.

      pixels.show(); // This sends the updated pixel color to the hardware.

      delay(delayval); // Delay for a period of time (in milliseconds).

      // Serial.println(i);

    }

  } // END LOOP


  void onLEDbuttonChange() {
    // Do something
  }

  void onButton1Change() {
    // Do something

    Serial.println("virtual button click");

    lEDbutton = "Button Color 1 Pushed";

      noColor();

  } // End Here

  void onButton2Change() {
    // Do something

    lEDbutton = "Button Color 2 Pushed";

    setColor();

  } // End Here


  void onButton3Change() {
    // Do something

    lEDbutton = "Button Color 3 Pushed";

    setColor2();
  }

  void noColor() {
    redColor = 0;
    greenColor = 0;
    blueColor = 0;
  };


  void setColor(){
    redColor = 0;
    greenColor = 255;
    blueColor = 255;
    Serial.print("red: ");
    Serial.print("green: ");
    Serial.print("blue: ");

  };

  void setColor2() {
    redColor = 255;
    greenColor = 0;
    blueColor = 255;
};


IDM241: Microinteractions

By Kara Butler – 2022

IDM241: Microinteractions

By Durando Angiulo – 2022

IDM241: Microinteractions

By Samiha Shoshi – 2022
